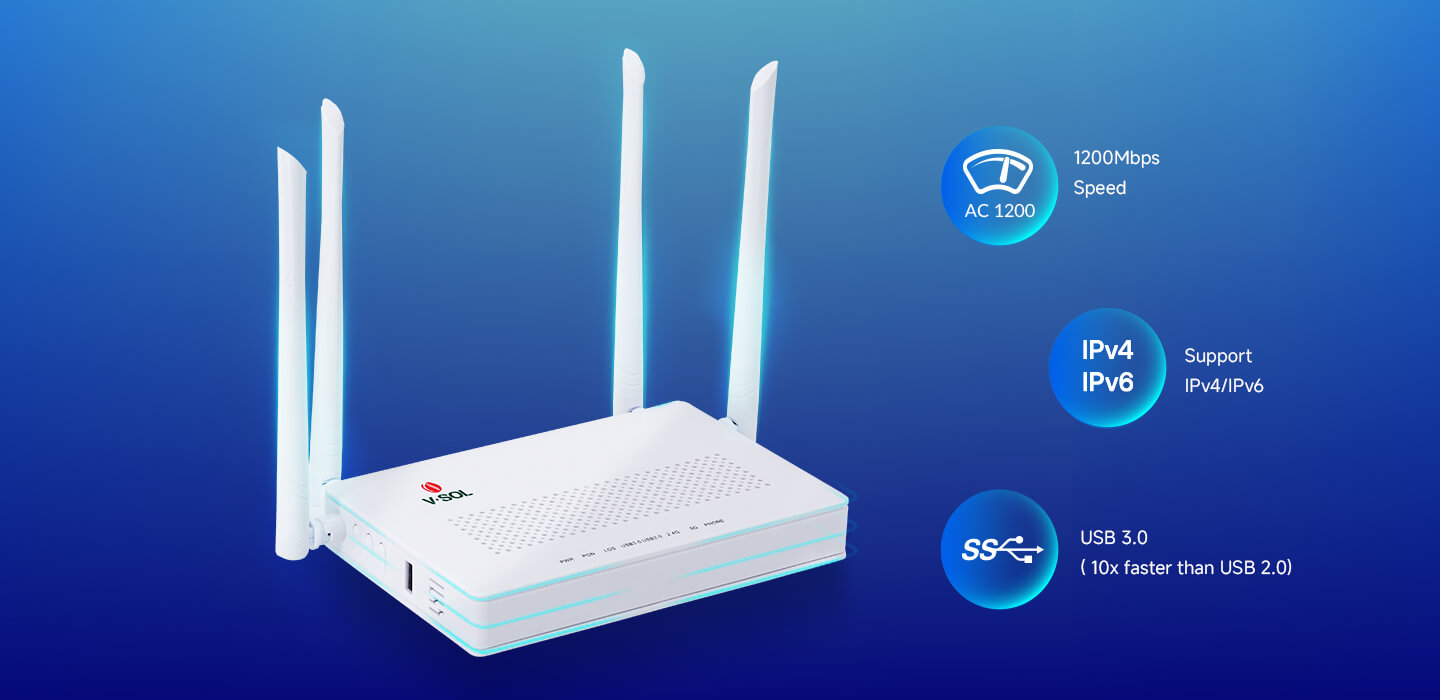

V-SOL Dual-band Gigabit WiFi5 Router
MTK WiFi5 Chipset | 1200Mbps | IPV4/IPV6 | USB 3.0
Rich Interface, Enjoy Full Gigabit Experience
1*XPON+4GE+WiFi5+USB 3.0
AC1200 Dual-band Wireless Connection
Up to Combo wireless speed of 1200Mbps in both the 2.4GHz and 5GHz bands
4×5dBi Gain External Antennas
Larger isolation are obtained between the antennas through scientific and professional layout, effectively reduce signal overlap and facilitate signal transmission to bring out wider coverage!
| ○ Hardware Parameter | |
| Dimension | 205mm×140mm×37mm(L×W×H) |
| Net weight | 0.34Kg |
| Operating condition | Operating temp: 0 ~ +50°C Operating humidity: 5 ~ 90% (non-condensed) |
| Storing condition | Storing temp: -30 ~ +75°C Storing humidity: 5 ~ 90% (non-condensed) |
| Power adapter | DC 12V, 1/1.5A, external AC-DC power adaptor |
| Power supply | ≤10W |
| Interfaces | 4GE+WiFi5+USB 3.0 |
| Indicators | PWR, PON, LOS, WAN, ETH1~ETH4, 2.4Ghz WiFi, 5Ghz WiFi, WPS, USB |
| ○ Interface parameter | |
| PON interface |
|
| WiFi interface |
|
| LAN interface | 4*GE, Auto-negotiation, RJ45 ports |
| USB interface | USB 3.0 for Shared Storage/Printer |
| ○ Function Data | |
| XPON mode | Dual mode , can access EPON/GPON OLTs(HUAWEI,ZTE,FiberHome, etc.) |
| Connect mdoe | Routing Mode |
| WiFi |
|
| Firewall | DDOS, Filtering Based on ACL/MAC/URL |
| Layer2 | 802.1D & 802.1ad bridge, 802.1p Cos,802.1Q VLAN |
| Layer3 | IPv4/IPv6 , DHCP Client/Server , PPPoE , NAT , DMZ , DDNS |
| Multicast | IGMP v1/v2/v3 , IGMP snooping |
| Security | Flow & Storm control, Loop Detection |
| O&M | WEB/TELNET/OAM/OMCI, Support private OAM/OMCI protocol and Unified network management of VSOL OLT |
